更多>>1XXD16368MGA DSB211SDN 16.368M KDS溫補TCXO晶振
來源：http://www.jngps.cn 作者：zhaoxiandz 2025年05月14
1XXD16368MGA晶體振蕩器DSB211SDN 16.368M KDS溫補TCXO晶振
晶體諧振器與振蕩電路一起產生時鐘信號.
clock信號可以比作拍手.電子部件與拍手同步運行.拍手的速度越快,電子設備的性能（處理速度）就越高.例如,您可能在個人計算機的規格表上看到過“CPU：GHz”.這是clock signal speed.
KDS晶振石英晶體用于許多電子設備,因為它們可以很容易地產生快速穩定的clock信號.
晶體振蕩器將晶體諧振器和振蕩電路封裝在陶瓷封裝中.
因此,晶體諧振器可以與各種部件組合起來,增加功能,實現模塊化.除了晶體振蕩器外,晶體諧振器的應用還包括配備熱敏電阻的諧振器與溫度傳感器的組合,以及與時間管理功能IC組合的實時時鐘.

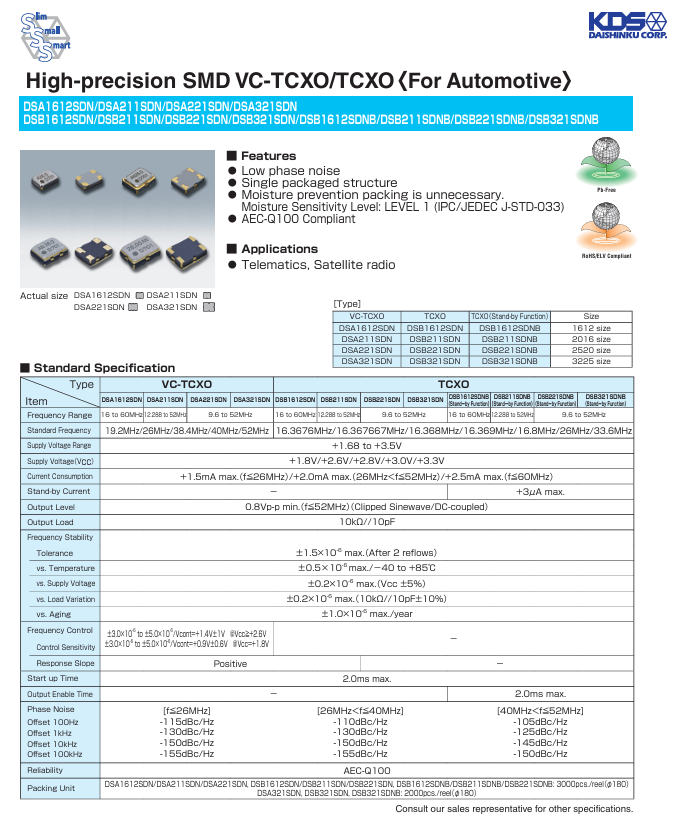

特性
貼片晶振低相位噪聲
單封裝結構
不需要防潮包裝.
濕度敏感等級：1級（IPC/JEDECJ-STD-033）
AEC-Q100兼容
應用程序
遠程信息處理,衛星廣播
1XXD16368MGA晶體振蕩器,衛星廣播晶振,有源晶振聲表面諧振器
1XXD16368MGA晶體振蕩器,衛星廣播晶振,有源晶振聲表面諧振器
The crystal resonator generates the clock signal together with the oscillation circuit.
The clock signal can be compared to clapping hands. The electronic components operate in synchronization with the clapping hands. The faster you clap your hands, the higher the performance (processing speed) of the electronic device will be. For example, you might have seen "CPU: GHz" on the specification sheet of a personal computer. This is 進口晶振clocksignalspeed.
Quartz crystals are used in many electronic devices because they can easily generate fast and stable clock signals.
The crystal oscillator encapsulates the crystal resonator and oscillation circuit in a ceramic package.
Therefore, crystal resonators can be combined with various components to enhance functionality and achieve modularization. In addition to crystal oscillators, the applications of crystal resonators also include the combination of resonators equipped with thermistors and temperature sensors, as well as real-time clocks combined with time management function ics.
Characteristics
Low phase noise
Single package structure
Humidity sensitivity grade: Level 1 (IPC/JEDECJ-STD-033)
Compatible with EC-Q100
Application program
進口晶振手機:13590198504
陶瓷貼片晶振郵箱:zhaoxiandz@163.com
日本臺灣歐美晶振品牌網站:http://www.jngps.cn/1XXD16368MGA晶體振蕩器,衛星廣播晶振,有源晶振溫補晶振
