新穎的溫補晶振AST3TQ53-T-20.000MHZ-2-C是COTS軍用無線電最佳臻選，尋求在其系統中跨多個電壓使用通用本地振蕩器的設計人員將從 Abracon 的連續電壓振蕩器系列中受益。簡單封裝石英晶體振蕩器 (SPXO) 和溫控晶體振蕩器 (TCXO) 器件旨在支持需??要降低整體系統功率預算的低功耗和電池供電設計。Abracon 的連續電壓系列提供廣泛的電源電壓，同時仍保持各種工作溫度和穩定性選項。

新穎的溫補晶振AST3TQ53-T-20.000MHZ-2-C是COTS軍用無線電最佳臻選，下提供低 RMS 抖動性能，更常見的是 1.8V、2.5V、3.0V 和 3.3V有源晶振。與商品晶體振蕩器解決方案相比，振蕩器可以驅動多個負載，并且通常表現出更好的 EMI 性能。這些設備可以幫助設計人員減少組件數量并優化他們的物料清單。
連續電壓振蕩器非常適合 WiFi、藍牙、MCU、USB、以太網、局域網 (LAN)、醫療、工業控制和自動化、消費電子和 WANS 設計。這些器件采用 CMOS/HCMOS/LVCMOS 封裝，具有無限的應用潛力，尤其適用于需要在整個電池使用壽命期間運行的電池供電設計。

Manufacturer Part Number	Manufacturer品牌	Series	Type 類型	Frequency 頻率	Voltage - Supply電壓	Operating Temperature     工作溫度
AST3TQ53-T-19.200MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	19.2MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-19.440MHZ-2-C	Abracon晶振	AST3TQ53	TCXO	19.44MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-19.440MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	19.44MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-20.000MHZ-2-C	Abracon晶振	AST3TQ53	TCXO	20MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-20.000MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	20MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-24.576MHZ-2-C	Abracon晶振	AST3TQ53	TCXO	24.576MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-24.576MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	24.576MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-25.000MHZ-2-C	Abracon晶振	AST3TQ53	TCXO	25MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-25.000MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	25MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-26.000MHZ-2-C	Abracon晶振	AST3TQ53	TCXO	26MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-26.000MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	26MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-30.720MHZ-2-C	Abracon晶振	AST3TQ53	TCXO	30.72MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-30.720MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	30.72MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-40.000MHZ-2-C	Abracon晶振	AST3TQ53	TCXO	40MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-40.000MHZ-2-SW	Abracon晶振	AST3TQ53	TCXO	40MHz	3.3V	-40°C ~ 85°C

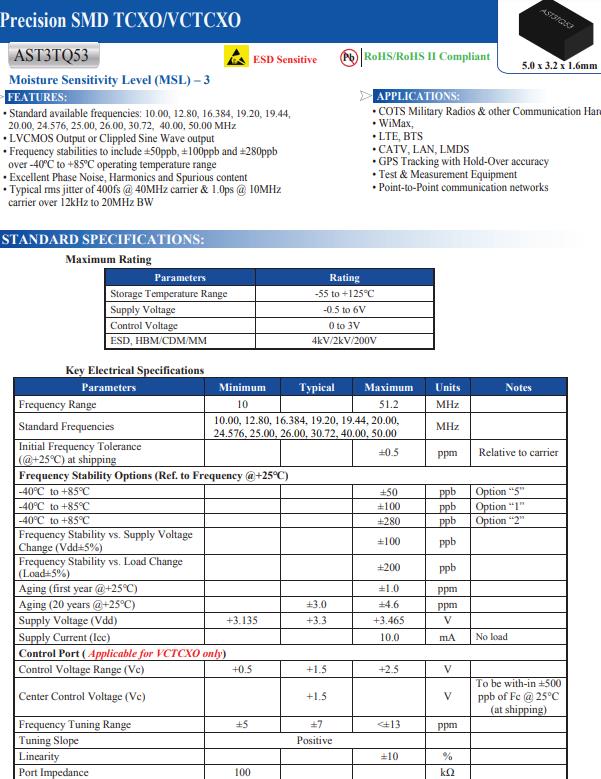

Abracon晶振推出新型的TCXO溫補晶振AST3TQ53-T-20.000MHZ-2-C，特征：標準可用頻率:10.00,12.80,16.384,19.20,19.44，20.00, 24.576, 25.00, 26.00, 30.72, 40.00, 50.00 MHz，LVCMOS輸出或剪切正弦波輸出，頻率穩定性包括±50ppb，±100ppb和±280ppb，超過-40℃至+85℃的工作溫度范圍，優秀的相位噪聲，諧波和雜散內容，典型的rms抖動400fs @ 40MHz載波& 1.0ps @ 10MHz，載波超過12kHz至20MHz BW，應用:COTS軍用無線電和其他通信硬件,WiMax,LTE, BTS,catv, lan, LMDS,GPS跟蹤與保持精度,測試和測量設備,點對點通信網絡.
Designers seeking to utilize a common local oscillator across multiple voltages in their system will benefit from Abracon's Continuous Voltage oscillator family. The Simple Package Crystal Oscillator (SPXO) and Temperature Controlled Crystal Oscillator (TCXO) devices are designed to support low power and battery-powered designs requiring reduced overall system power budget. Abracon’s Continuous Voltage family offers a wide range of supply voltage while still maintaining various operating temperatures and stability options.
The MHz and kHz SPXO series are designed for simplicity and optimized for low power consumption while providing low RMS jitter performance at any voltage between 1.60 V and 3.60 V, the more common ones being 1.8V, 2.5V, 3.0V, and 3.3V. The oscillators can drive multiple loads and typically exhibit better EMI performance compared to commodity crystal oscillator solutions. The devices can help the designer reduce component count and optimize their Bill of Material.
The Continuous Voltage oscillators are well-suited for WiFi, Bluetooth, MCU, USB, Ethernet, local area networking (LAN), medical, industrial control and automation, consumer electronic, and WANS designs. Available in CMOS/HCMOS/LVCMOS, these devices provide limitless application potential, especially for battery-powered designs requiring operation throughout a battery’s life span.
